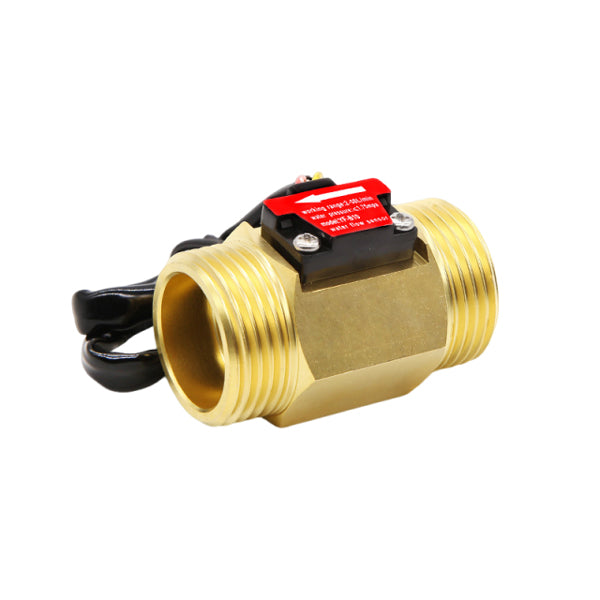

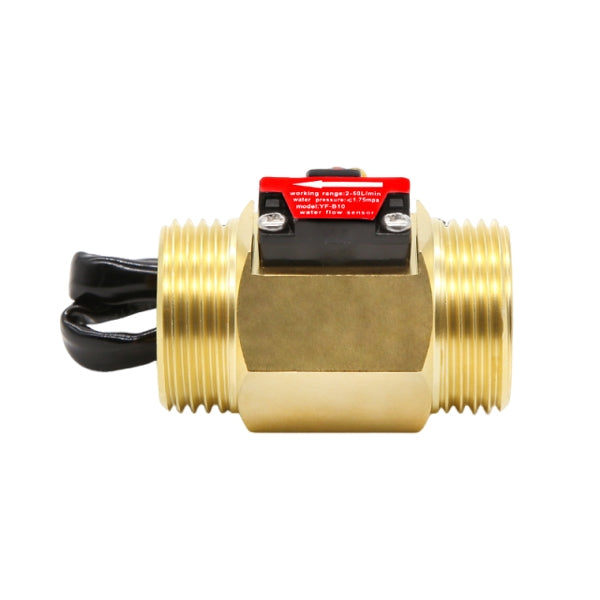

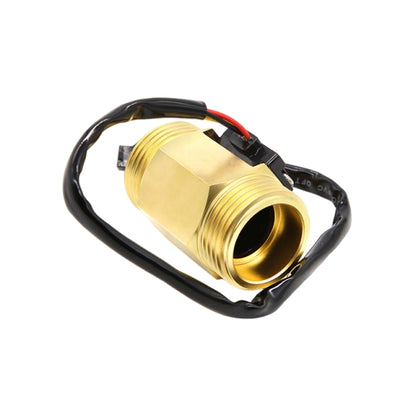

G3/4" Brass Hall Effect Water Flow Sensor, 2-50L/min High Precision Flowmeter, DC 5-18V

G3/4" Brass Hall Effect Water Flow Sensor, 2-50L/min High Precision Flowmeter, DC 5-18V

$69.00
$69.00
Sale Sold out
Taxes included. 🚚 Free Shipping 🕒 Delivery date: 7-12 Days 🔄 30-Day Returns

● 2~50 L/min
● G1'' interface
● Pulse output
● Brass valve body
View full details

Overview

The Industrial Brass Hall Effect Water Flow Sensor is engineered for high-precision monitoring in liquid circulation systems. Constructed with a heavy-duty, corrosion-resistant brass body and a standardized G1" threaded interface, it reliably supports a flow range of 2–50 L/min. By leveraging advanced Hall Effect technology, the internal magnetic rotor converts fluid movement into consistent pulse signals in real-time. Designed for durability, this sensor ensures long-term operational stability across a wide temperature spectrum (−20°C to 100°C) and is optimized for use with clean water and non-corrosive media.

Feature

High-Strength Brass Construction: The premium brass valve body is rated for operating pressures up to 1.75 MPa, providing superior structural integrity and corrosion resistance for demanding industrial environments.

Precision Hall-Effect Sensing: Utilizes the linear relationship between pulse frequency and flow velocity to deliver high-accuracy data output and stable signal transmission.

Broad Flow Versatility: Covering a dynamic range of 2–50 L/min, this sensor is highly adaptable, catering to both low-flow precision monitoring and high-volume water supply systems.

Excellent Thermal & Electrical Stability: Features industry-leading insulation resistance (>100 MΩ), ensuring robust anti-interference performance and safe operation during continuous, long-term duty cycles.

Standardized G1" Integration: The precision-machined G1" threads ensure a leak-proof, high-compatibility connection, significantly reducing installation time and maintenance complexity.

TECHNICAL SPECIFICATIONS

Interface Dimensions
G1"
Flow Range
2–50 L/min
Suitable Media
Water (free of impurities)
Operating Voltage
3.5–24 VDC
Pressure Rating
≤ 1.75 MPa
Inner Diameter
24.5 mm
Outer Diameter
33 mm
Thread Length
13 mm
Valve Body Material
Copper
Media Temperature
-20–100 °C
Insulation Resistance
> 100 MΩ
Pulse Range
F = (8 × Q − 4), error ≤ 5%, approx. 476 pulses/liter
Output Pulse High Level
> DC 4.7 V (input voltage DC 5 V)
Output Pulse Low Level
< DC 0.5 V (input voltage DC 5 V)

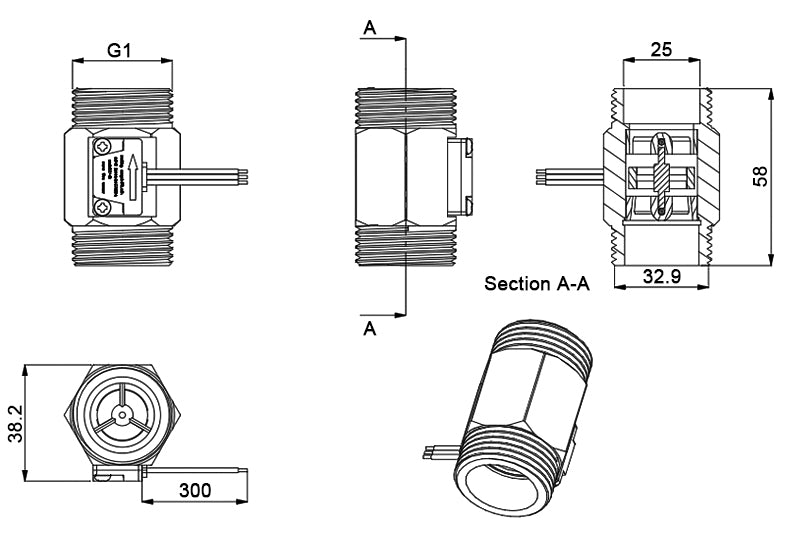

Dimension (unit: mm)

Dimension Drawing

Detail

Dimension Drawing
