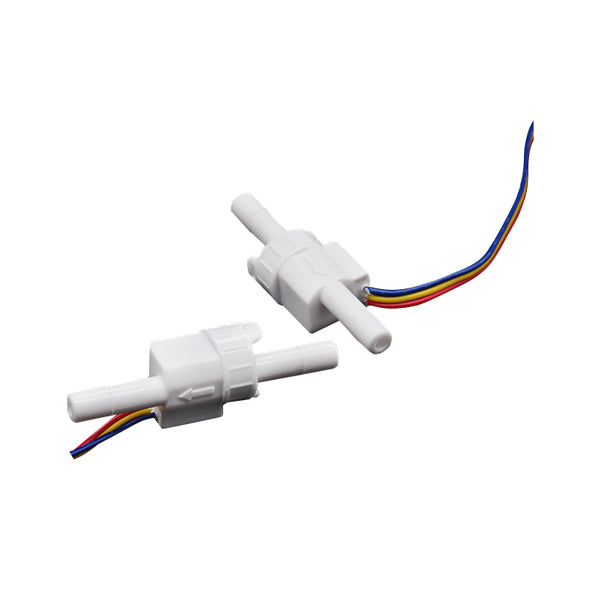

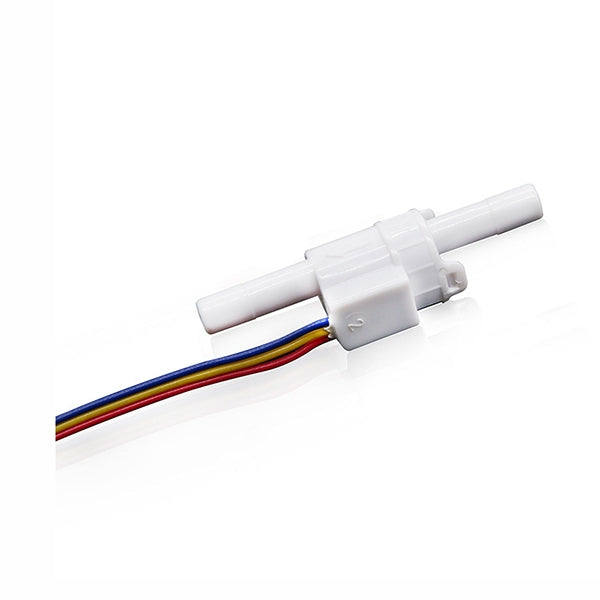

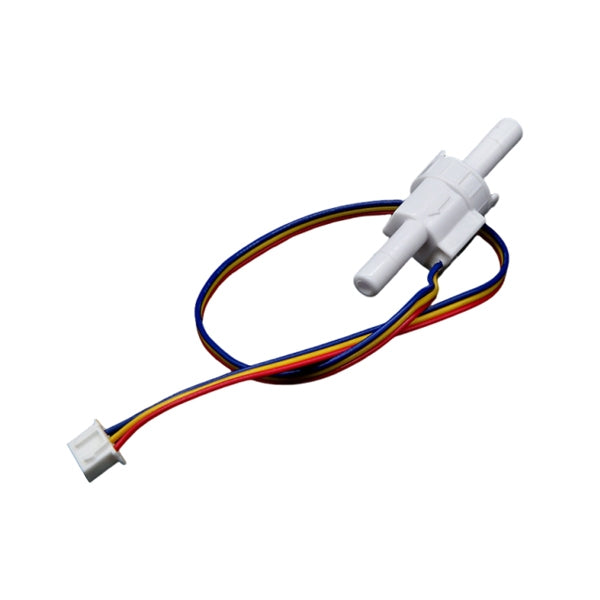

CUCIR Mini Hall Effect Water Flow Sensor, 0.05-1L/min Low Flow Rate Meter, DC 3.5-24V Pulse Signal Fluid Sensor for Residential Water Purifier & Coffee Machine

CUCIR Mini Hall Effect Water Flow Sensor, 0.05-1L/min Low Flow Rate Meter, DC 3.5-24V Pulse Signal Fluid Sensor for Residential Water Purifier & Coffee Machine

CUCIR-FLOW-TM02

Measuring Range
$29.00
$29.00
Sale Sold out
Taxes included. 🚚 Free Shipping 🕒 Delivery date: 7-12 Days 🔄 30-Day Returns

● 0.05-1 L/min, 0.3-4 L/min
● ≤0.8 MPa
● DC 3.5~24V
● 0~80°C operating temp
View full details

Overview

The CUCIR High-Precision Micro Flow Series offers professional-grade sensing solutions for low-flow environments. Designed with high-sensitivity internal architecture, these sensors provide selectable measurement ranges of 0.05–1 L/min and 0.3–4 L/min with an impressive accuracy of ±3%. Even under ultra-low flow conditions, the sensor maintains consistent and stable pulse output. This series is the ideal choice for precision metering in water heaters, smart water control systems, and automated dispensing equipment.

Feature

Precision Low-Flow Performance: Engineered for high sensitivity, the sensor achieves ±3% accuracy and remains stable even at the threshold of minimal water flow, ensuring reliable data for delicate applications.

High-Stability Pulse Output: Delivers a clean, consistent pulse signal directly proportional to the flow rate. The distinct low-level signal facilitates precise quantitative dosing and accurate cumulative flow statistics.

Ultra-Low Power & Wide Voltage Design: Compatible with a wide power supply range of DC 3.5–24V. With a maximum operating current of just 15 mA (at DC 5V), it minimizes power consumption and thermal interference in sensitive electronic systems.

Industrial-Grade Reliability: Built to withstand a maximum pressure of 0.8 MPa. The sensor operates reliably across a temperature range of 0–80°C and humidity levels up to 90% RH, meeting the rigorous standards required for home appliances, water treatment, and industrial monitoring.

TECHNICAL SPECIFICATIONS

Flow Range
0.05~1 L/min ±3% ； 0.3~4 L/min ±3%
Pressure Resistance
≤0.8 MPa
Operating Voltage Range
DC 3.5~24V
Max Operating Current
15mA (at DC 5V)
Insulation Resistance
>100 MΩ
Load Capacity
≤10 mA (at DC 5V)
Operating Humidity Range
35%~90% RH (non-condensing)
Operating Temperature Range
0~80°C
Output Pulse High Level
>DC 4.5V (input voltage： DC 5V)
Output Pulse Low Level
Pulse Characteristics
Inner diameter 1.2mm(Hz)= [86×Q] ±2%, approx. 5160 pulses per liter
Inner diameter 2.5mm(Hz)= [43×Q] ±2%, approx. 2580 pulses per liter

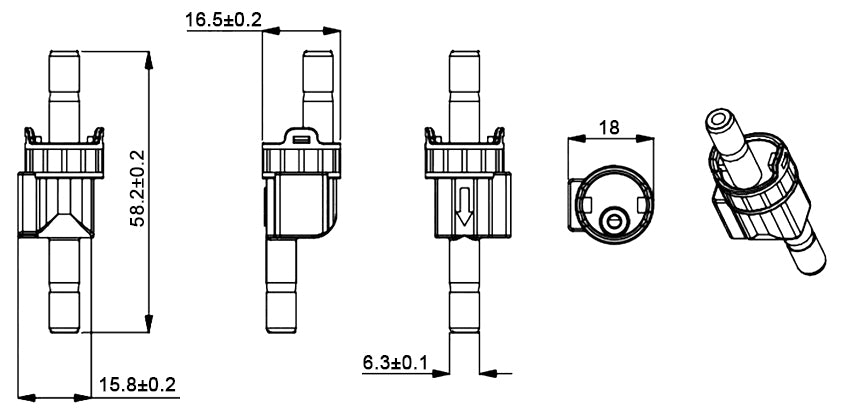

Dimension (unit: mm)

Dimension Drawing

Detail

Dimension Drawing
