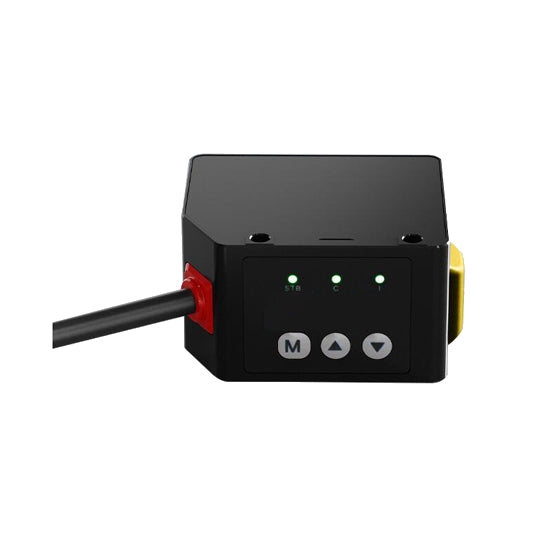

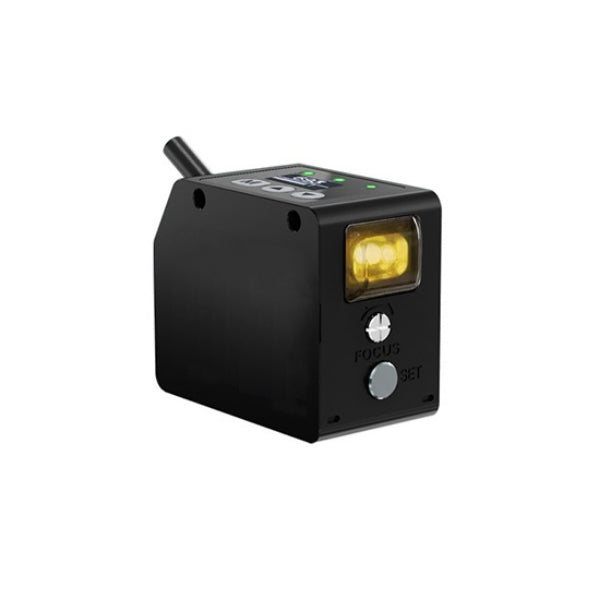

Long Range Optical Color Recognition Sensor | 30-70mm/150-500mm, RS485 & Smart I/O (NPN/PNP NO/NC) for Factory Automation
Long Range Optical Color Recognition Sensor | 30-70mm/150-500mm, RS485 & Smart I/O (NPN/PNP NO/NC) for Factory Automation
SKU:CUCIR-FW-D70
Regular price
$279.00
Regular price
Sale price
$279.00
🚚 Free Shipping 🕒 Delivery date: 7-12 Days 🔄 30-Day Returns
● Output mode: I/O, RS485

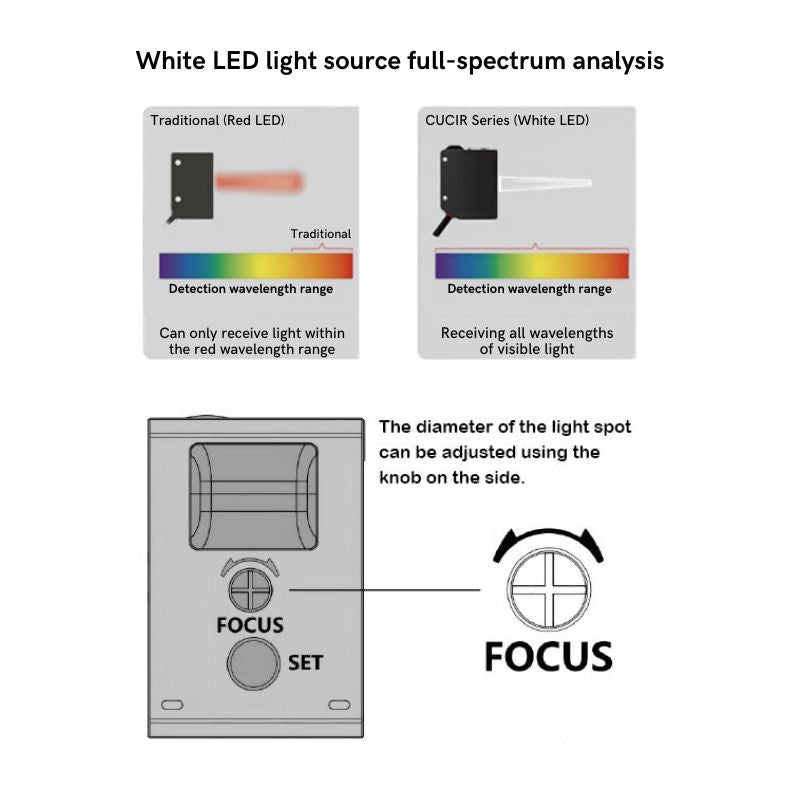

● Light source: White LED
● Detection range: 30–70mm, 70–150mm, 150–500mm
● Timer: OFF/ON·Delay/OFF-Delay/Single Delay
Couldn't load pickup availability
Overview
Feature
TECHNICAL SPECIFICATIONS
| model |
FW-D70
|
FW-D70
|
FW-D500
|
| model |
FW-D70-485
|
FW-D70-485
|
FW-D500-485
|
| Minimum Spot Diameter |
Approx. Φ7mm at 50mm
|
At 100mm, approximately Φ4.5mm
|
At 250mm, approximately Φ11mm;At 500mm, approximately Φ20mm
|
| Detection Distance |
30–70mm, 70–150mm, 150–500mm
| ||
| Output Mode |
I/O, RS485 (NPN, PNP normally open/normally closed) optional
| ||
| Response Time |
200μs/ 1ms/ 5ms/ 10ms/ 20ms/ 100ms/ 500ms
| ||
| Light Source |
White LED
| ||
| Timer |
OFF/ ON·Delay/ OFF-Delay/ Single Delay
| ||
| Power Supply Voltage |
12V~24V DC ±10%, ripple P-P ≤10%
| ||
| Current Consumption |
≤60mA at 24V DC (excluding load) / ≤110mA at 12V DC (excluding load)
| ||

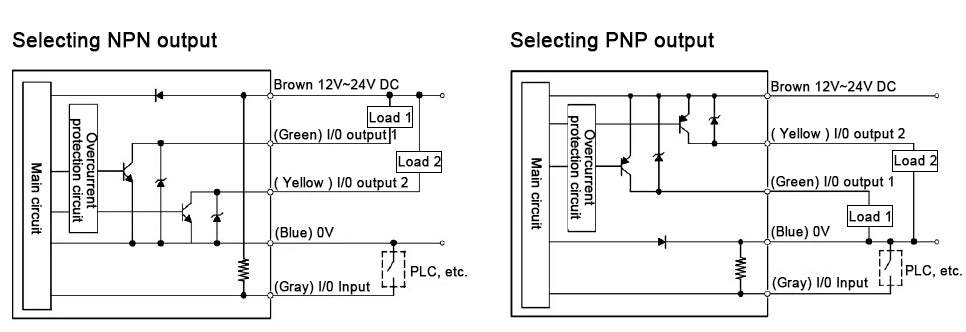

| I/O Control Output |
NPN Open Collector / PNP Open Collector (Switching Mode, NO/NC selectable, Below 30V DC, Below 50mA, Residual Voltage Below 2V)
| ||
| I/O External Input |
Sensitivity Setting / Beam Stop (Switching Mode, Short-Circuit Current： NPN Below 1mA / PNP Below 2mA)
| ||

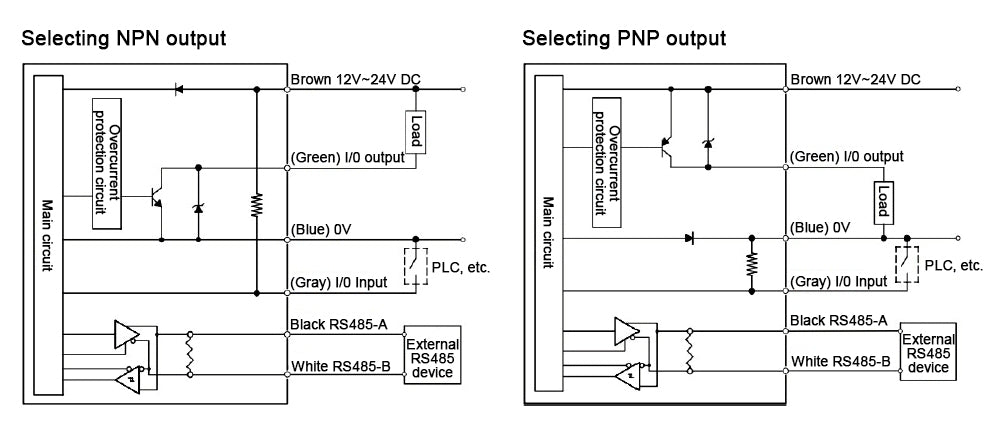

| RS-485 Communication Specifications |
Half-Duplex
| ||
| Protection Circuit |
Reverse polarity protection for power supply, power surge protection, output overcurrent protection, output reverse polarity protection
| ||
| Enclosure Protection Rating |
IP65
| ||
| Ambient Illumination |
Incandescent light： Below 10,000 lux / Daylight：Below 20,000 lux
| ||
| Ambient Temperature |
-20 to +50°C (no freezing)
| ||
| Ambient Humidity |
35 to 85% RH (no condensation)
| ||
| Shock Resistance |
1000 m/s², 6 times each in X/Y/Z directions
| ||
| Vibration Resistance |
10-55 Hz, 1.5mm bi-directional amplitude, 2 hours each in X/Y/Z directions
| ||
| Material (Housing) |
Zinc-aluminum alloy (chrome-plated)
| ||
| Material (Indicator Cover) |
PC (Polycarbonate)
| ||
| Material (Button) |
Silicone
| ||
| Material (Cable Gland & Cable) |
Flexible PVC
| ||
| Material (Spot Adjustment Dial) |
304 Stainless Steel
| ||
| Weight |
Approx. 140g (including cable)
| ||

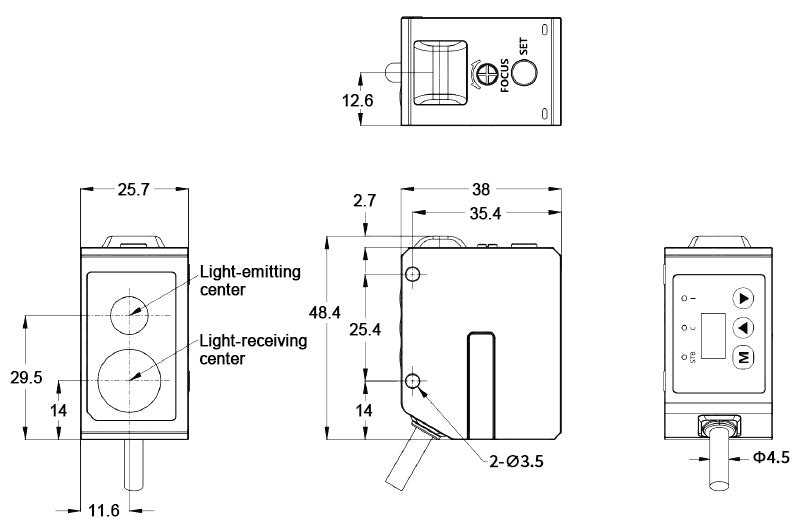

Dimension (unit: mm)
Detail
