Marine 3-Cup Anemometer Wind Speed Sensor, High Precision Wind Gauge for Yacht, Sailboat, Boat, Cruising Vessel, Weather Station Sensor, Durable Waterproof Marine Anemometer

Marine 3-Cup Anemometer Wind Speed Sensor, High Precision Wind Gauge for Yacht, Sailboat, Boat, Cruising Vessel, Weather Station Sensor, Durable Waterproof Marine Anemometer

Output Signal
$168.90
$168.90
Sale Sold out
Taxes included. 🚚 Free Shipping 🕒 Delivery date: 7-12 Days 🔄 30-Day Returns

● Wide Measurement Range: 0 to 30 m/s, perfectly capturing everything from gentle marine breezes to fierce storms.
● Industrial-Grade Accuracy: Precise tolerance of ± (0.3 + 0.03V) m/s for dependable navigation data.
● Versatile Signal Output: Available in Pulse, 4–20mA, or RS485 to easily connect with your yacht’s PLC, weather station, or chartplotter.
● Broad Voltage Compatibility: DC 5–24V / 12–24V input, effortlessly adapting to standard 12V/24V boat battery systems.
View full details

Overview

The CUCIR professional marine anemometer utilizes advanced electromagnetic induction technology to deliver high-precision wind speed measurements ranging from 0 to 30 m/s (0–67 mph). Engineered to withstand the harshest offshore and industrial environments, it operates reliably across an extreme temperature range of -30°C to +70°C.

To ensure seamless integration with standard marine instruments, weather stations, and PLC systems, the sensor offers versatile output options, including Pulse, 4-20 mA, and RS485. It supports a flexible wide-voltage power supply (DC 5-24 V or 12-24 V), making it perfectly compatible with standard 12V/24V vessel battery grids.

Featuring a built-in digital processing circuit with automatic temperature compensation and robust anti-RFI/EMI (Radio Frequency & Electromagnetic Interference) capabilities, the sensor outputs an exceptionally stable, linear relationship with horizontal wind speed. Rated at IP65 for dust and water protection, this commercial-grade wind sensor is ideal for yacht navigation, marine meteorological monitoring, wind power generation, and demanding environmental observation applications.

Feature

Marine-Grade All-Metal Construction: Premium aluminum alloy shell paired with heavy-duty 304 stainless steel wind cups and an anti-corrosion PCB coating, ensuring maximum structural integrity against salt spray, UV rays, and marine weathering.

Advanced Sealing Performance (IP65): High-end internal sealing rings completely prevent the intrusion of water, heavy moisture, salt mist, and fine dust, guaranteeing reliable long-term operations at sea.

High Sensitivity & Low Startup Threshold: Aerodynamically optimized 3-cup design offers a remarkably low startup wind speed, exceptional response sensitivity, and linear precision across the entire measurement range.

Industrial Interference Resistance: Integrated digital circuitry filters out electromagnetic and radio frequency noise, providing clean, uninterrupted data lines even when installed near high-power marine electronics.

Universal Compatibility & Simple Setup: Compact architectural footprint and highly adaptable power/signal configurations allow for rapid installation and effortless replacement on yachts, sailboats, or commercial vessels.

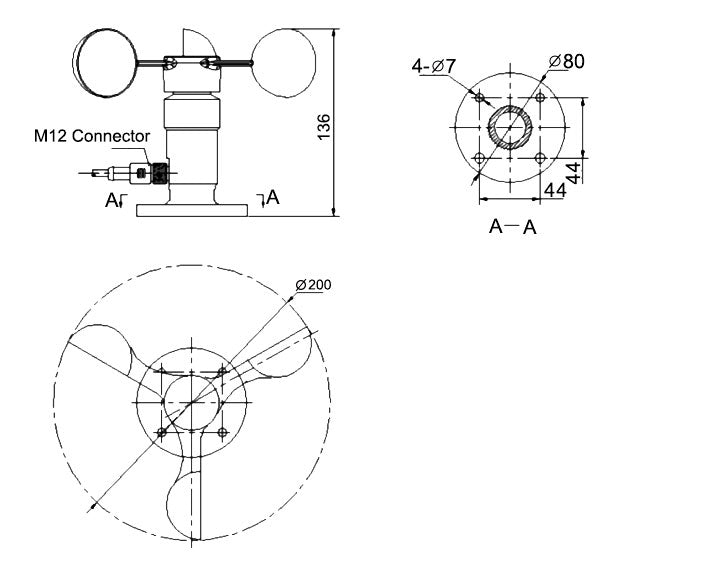

Dimension (unit: mm)

Dimension Drawing

Application
